VALCON

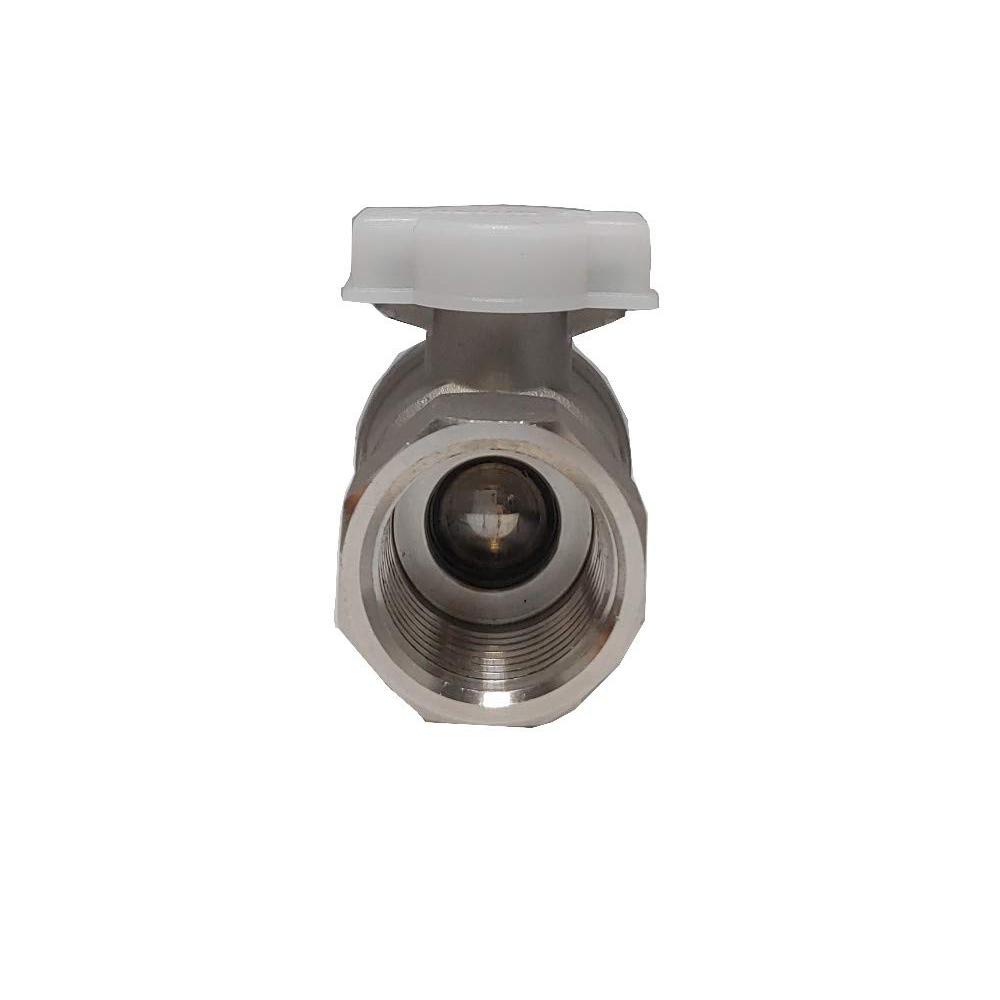

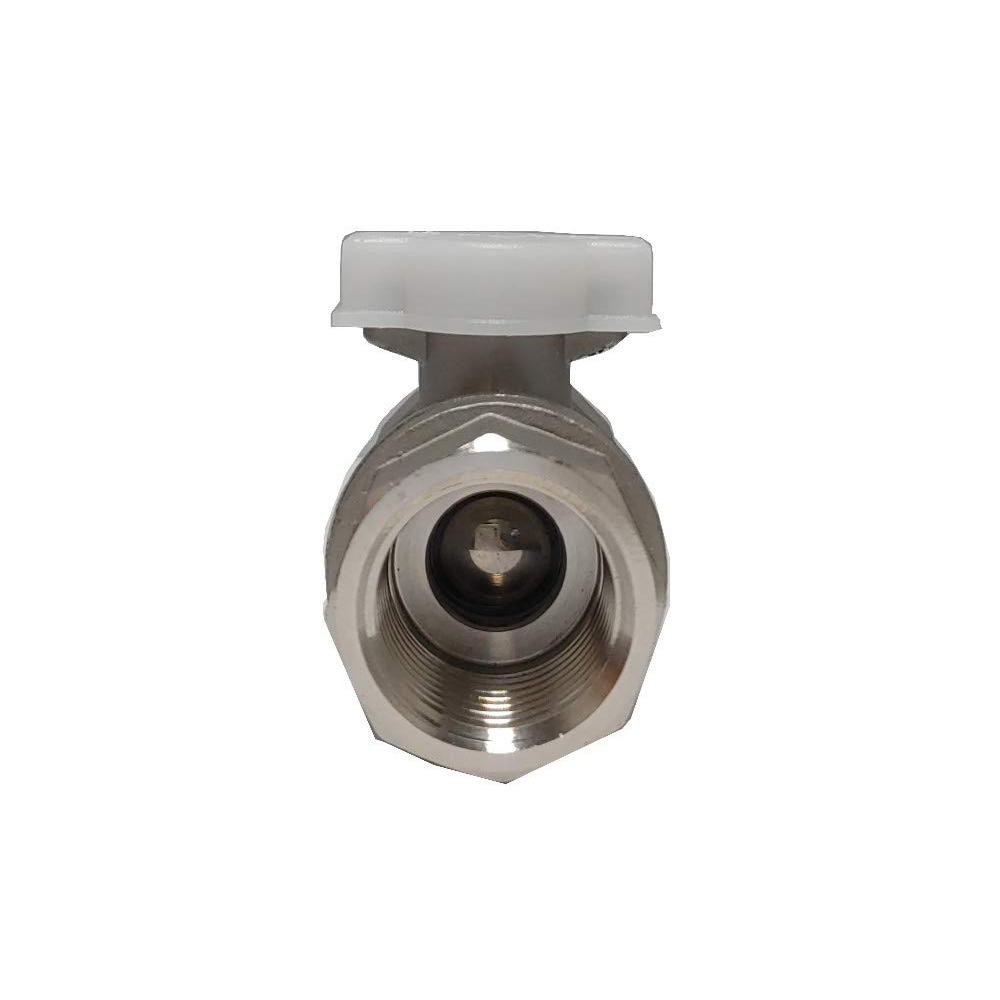

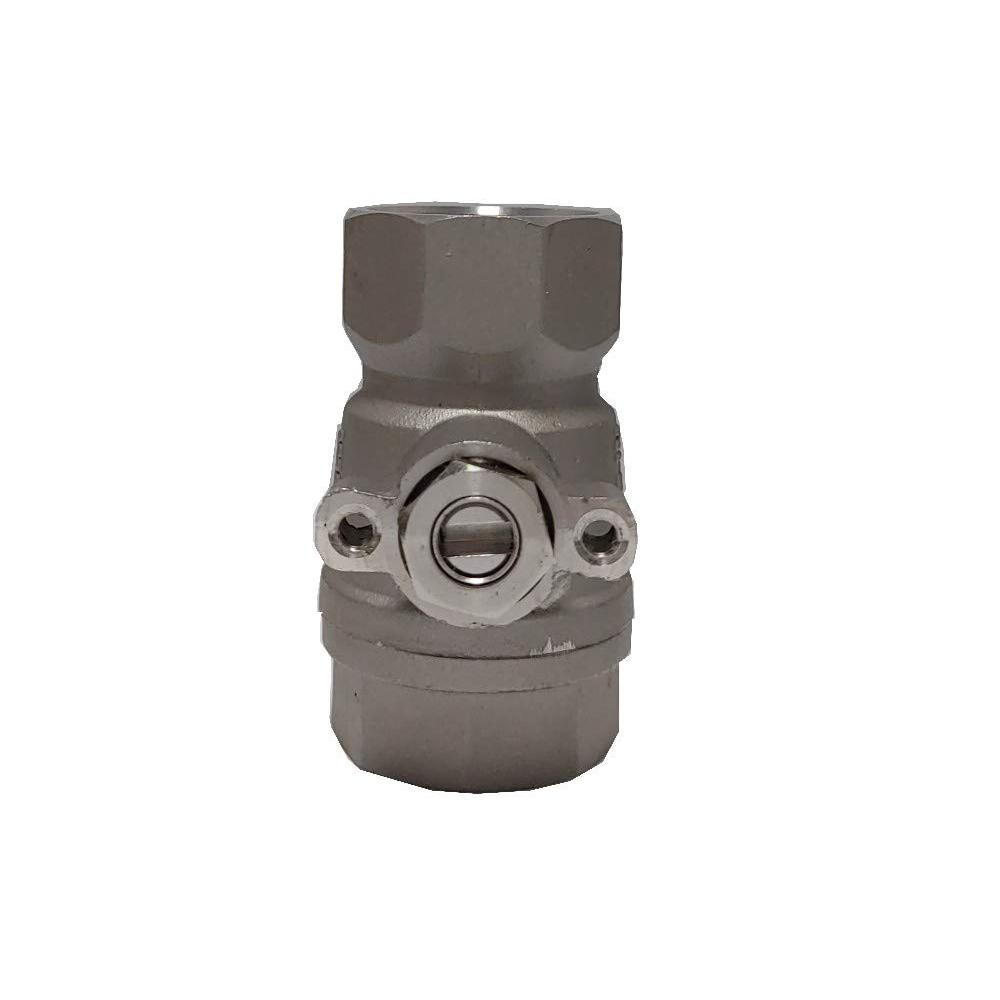

2 Way Ball Valve for Motorized Actuators - 3/4" Ball Valve

  • Payment
    OT , T/T , WK
  • MOQ
    1 Set
  • Country of sale
    Americas, Europe, Asia, Middle East, World Wide
  • PRICE
    • EXW

      USD 33.40

      (1 Set)

ITEM SPECIFICS

  • Brand
    VALCON
    Model VA20A-2S
  • origin
    Republic of Korea
  • Size(Capacity)
    3.55 x 1.97 x 2.76 inches
  • Weight
    270g
  • Package Includes
    1 Ball Valve
  • Material
    Stainless Steel
  • Style
    Ball Material Type : SUS 304 / Inlet Connection Type : Female Iron Pipe


PRODUCT DESCRIPTION


  • Ball valve type
  • Concise size & Long Life
  • Possible to change the stem
  • Assemble with actuator
  • Possible to control temperature and time

Technical Specification
Model: VA20A-2S
Application the actuator: AC220-50S, AT Series, A2 Series, AD-S Series
Pipe Diameter: 20 ㎜ (3/4")
Ball bore: 15㎜
End Connections: 3/4" Female PT
Weight : 270g
Max. Operating Temperature: 0℃ ~ 120℃ (32℉ ~ 248℉)
Max. Operating Pressure: 10kgf/㎠
Application Fluid: Non-Corrosive Liquid & Gas

Part-name: Materials
1. Stem Ring: SUS304
2. Stem Anchor Bolt: SUS304
3. Stem Washer(upper) : PTFE
4. Stem: SUS304
5. Stem O-ring: FKM
6. Stem Washer(lower): PTFE
7. Body: SCS13A
8. Ball Seat: PTFE
9. Ball: SUS304
10. O-ring: FKM
11. Cap: SCS13A

CAUTION
1. When piping, be careful not to tighten or loosen the valve body and cap
2. When the body side piping, use the octagonal sides of valve body and pipe
3. When the cap side piping, use the octagonal sides of valve cap and pipe
